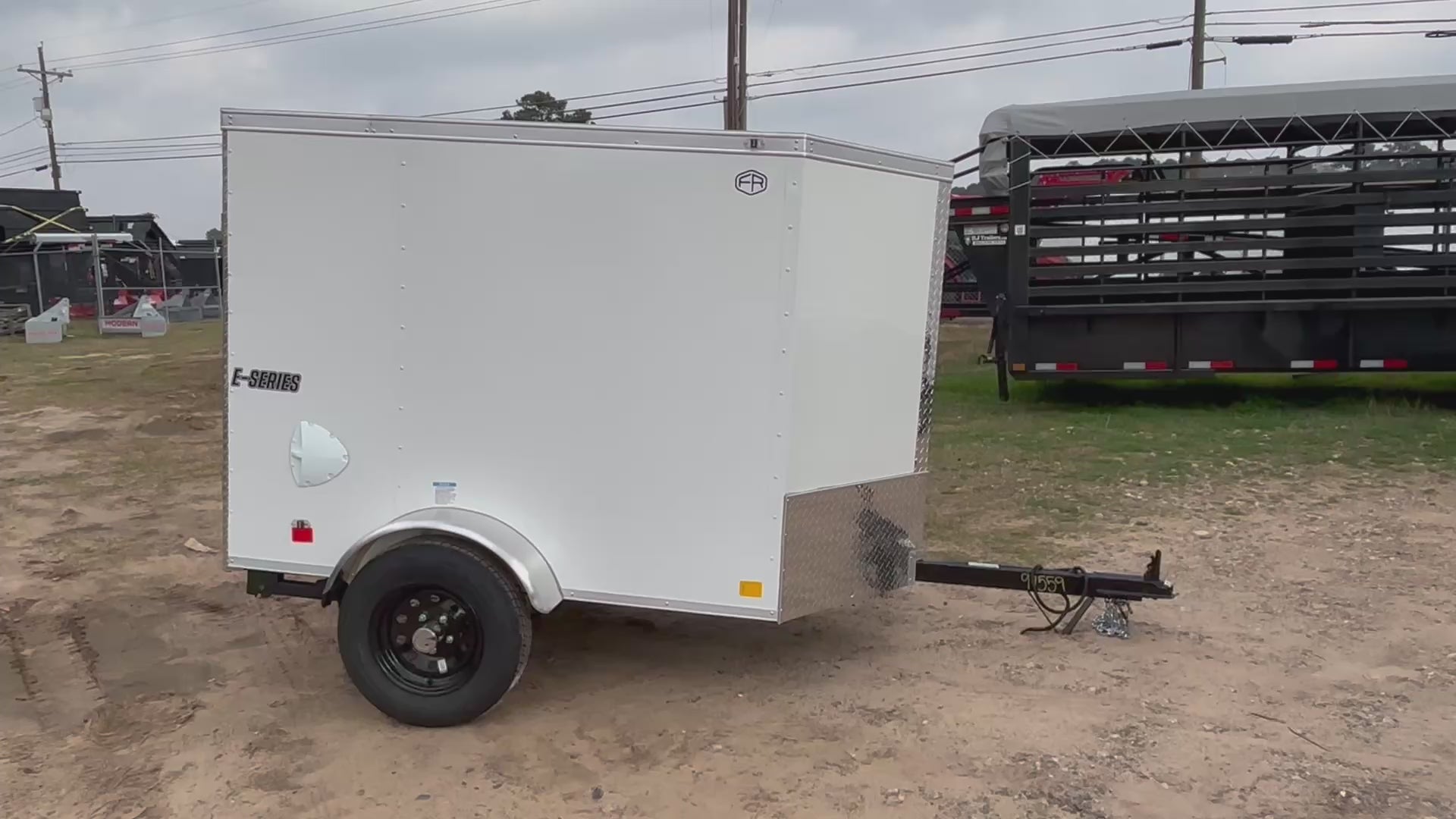

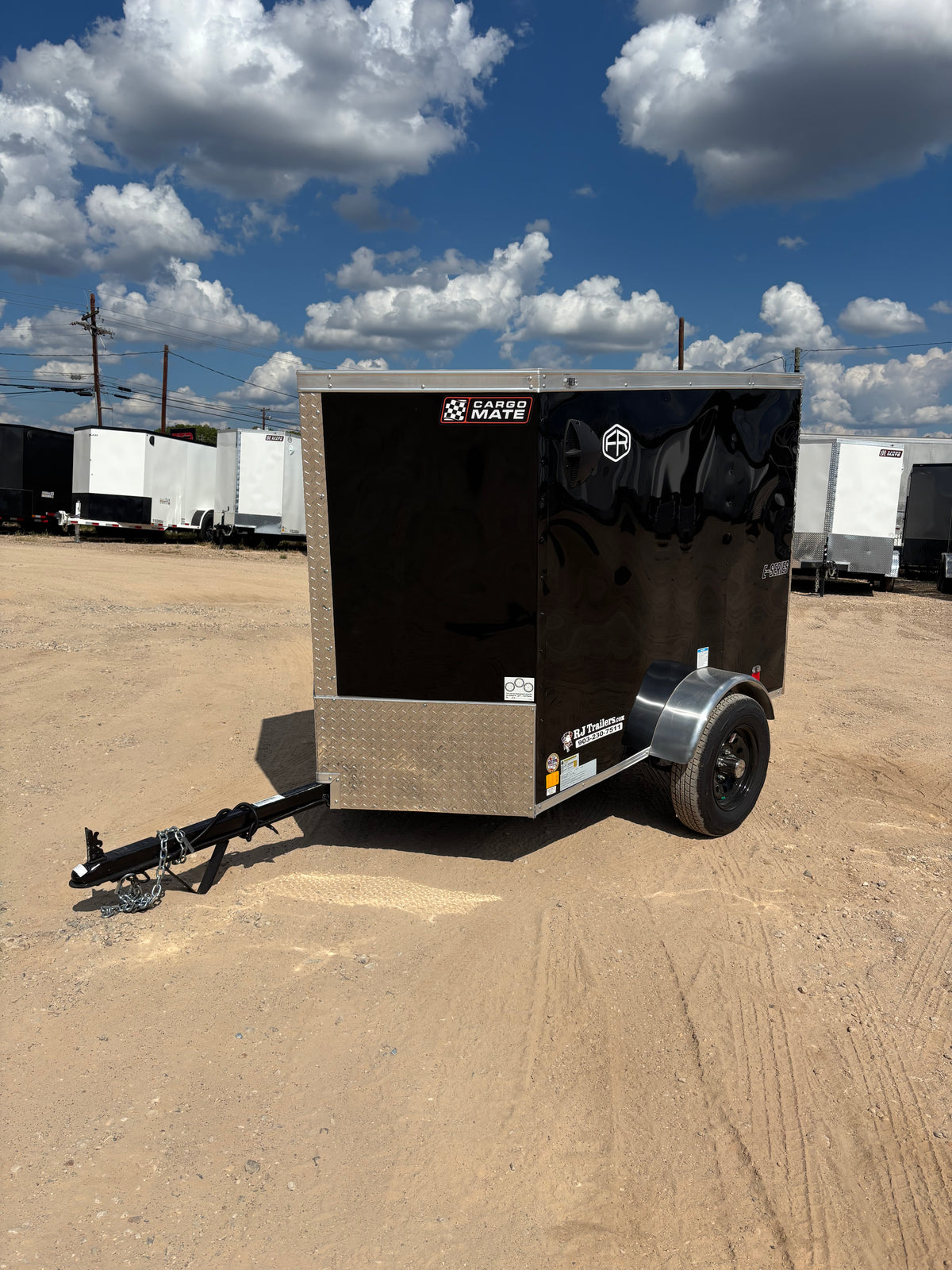

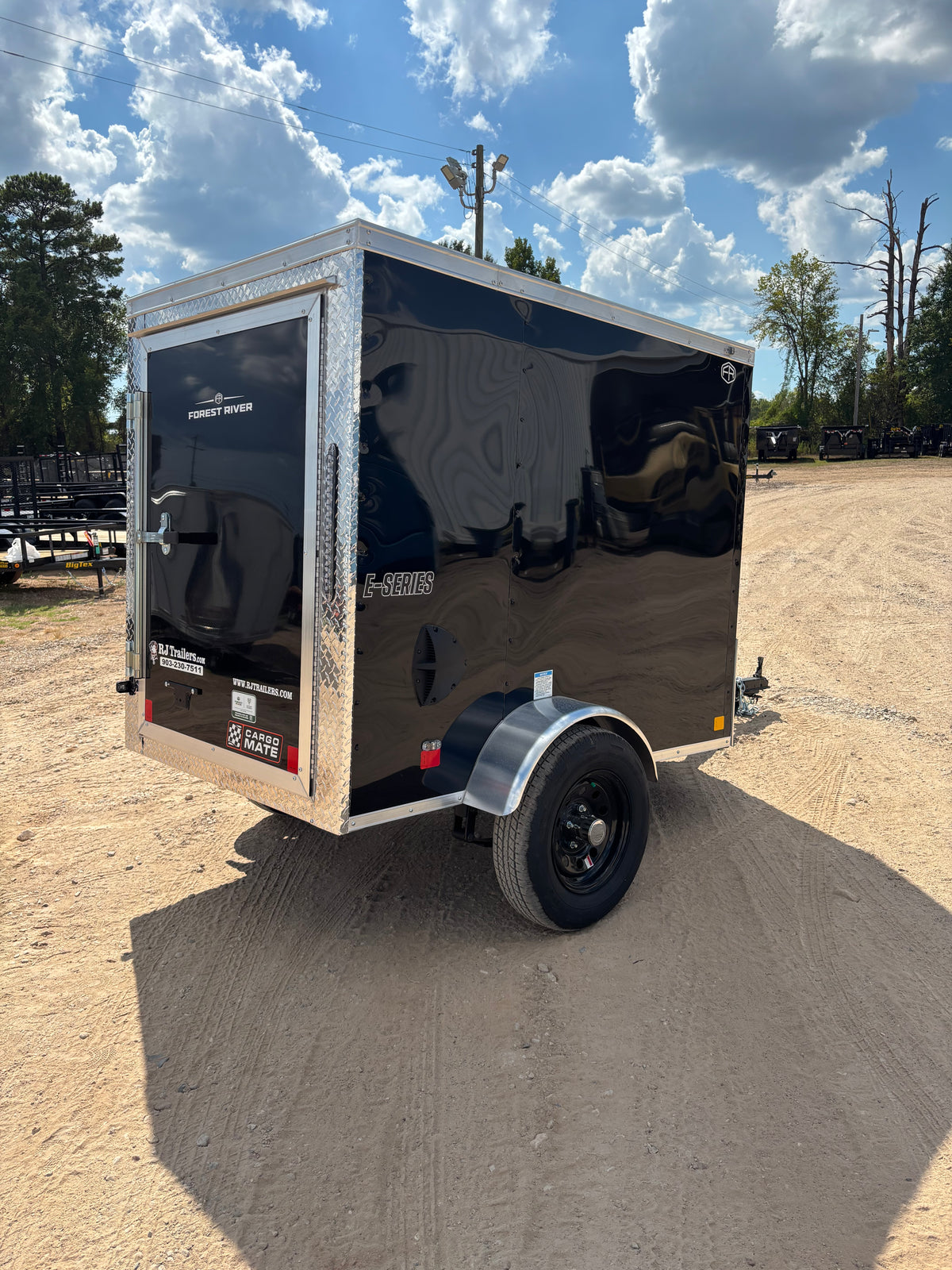

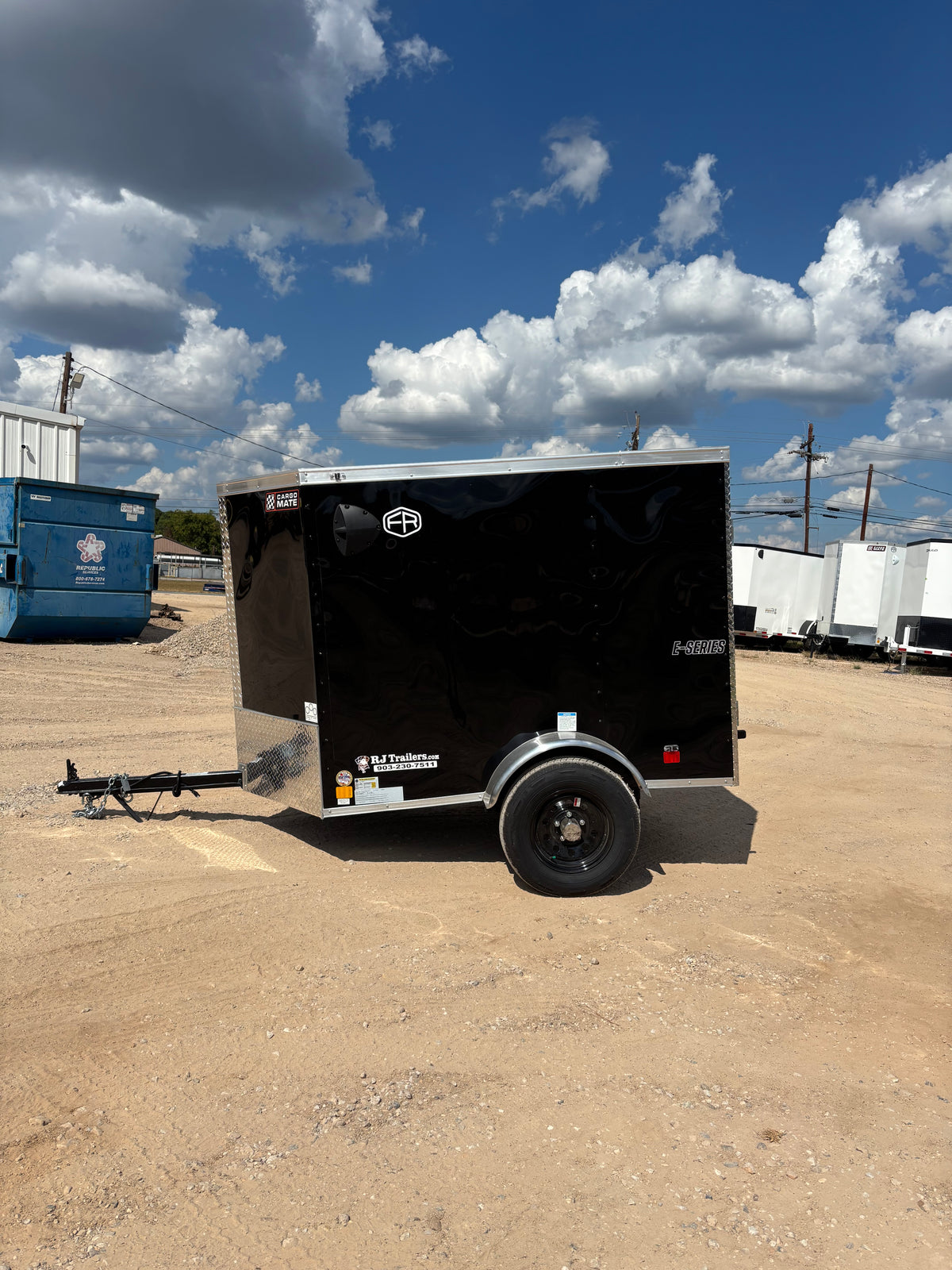

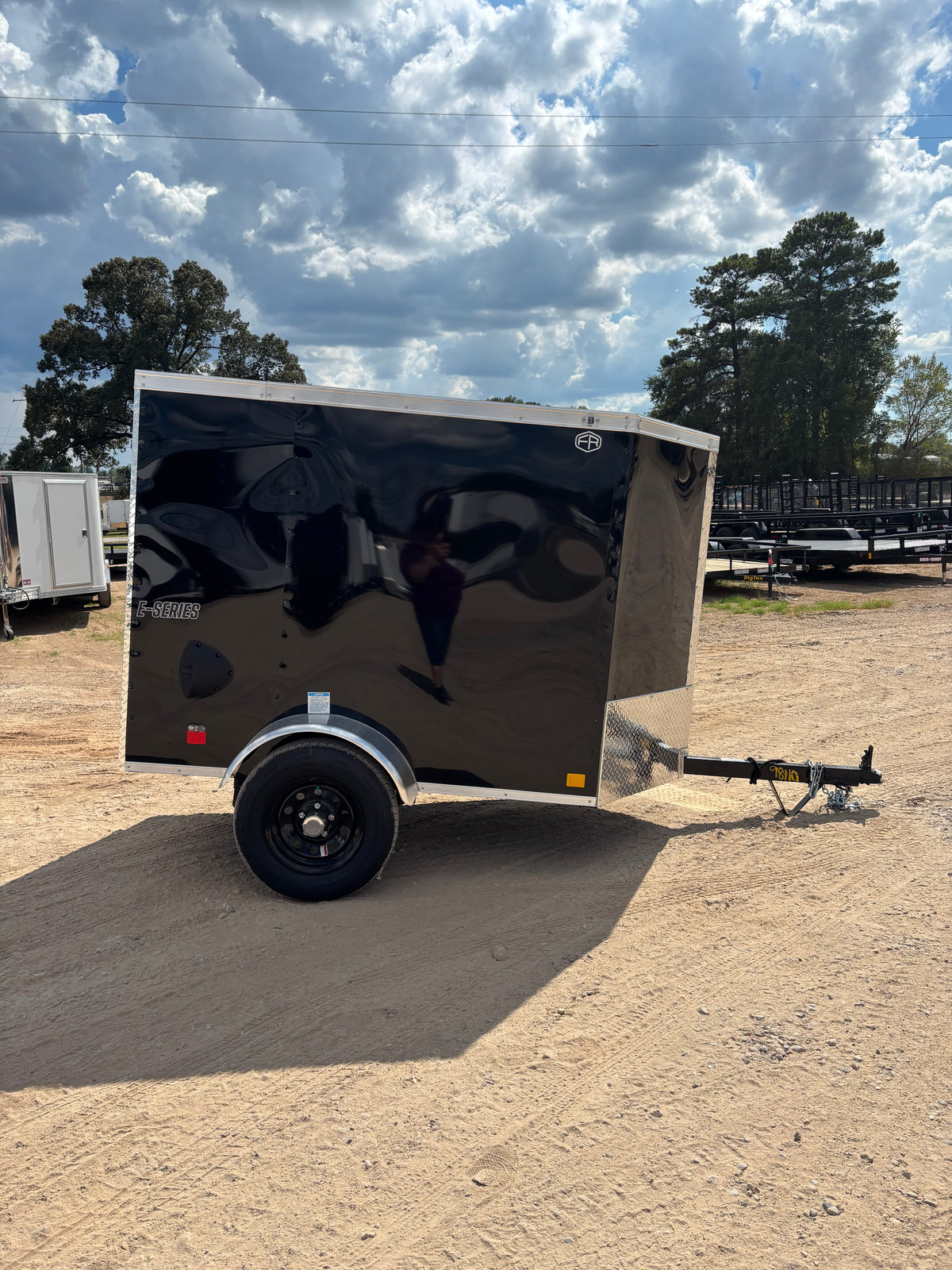

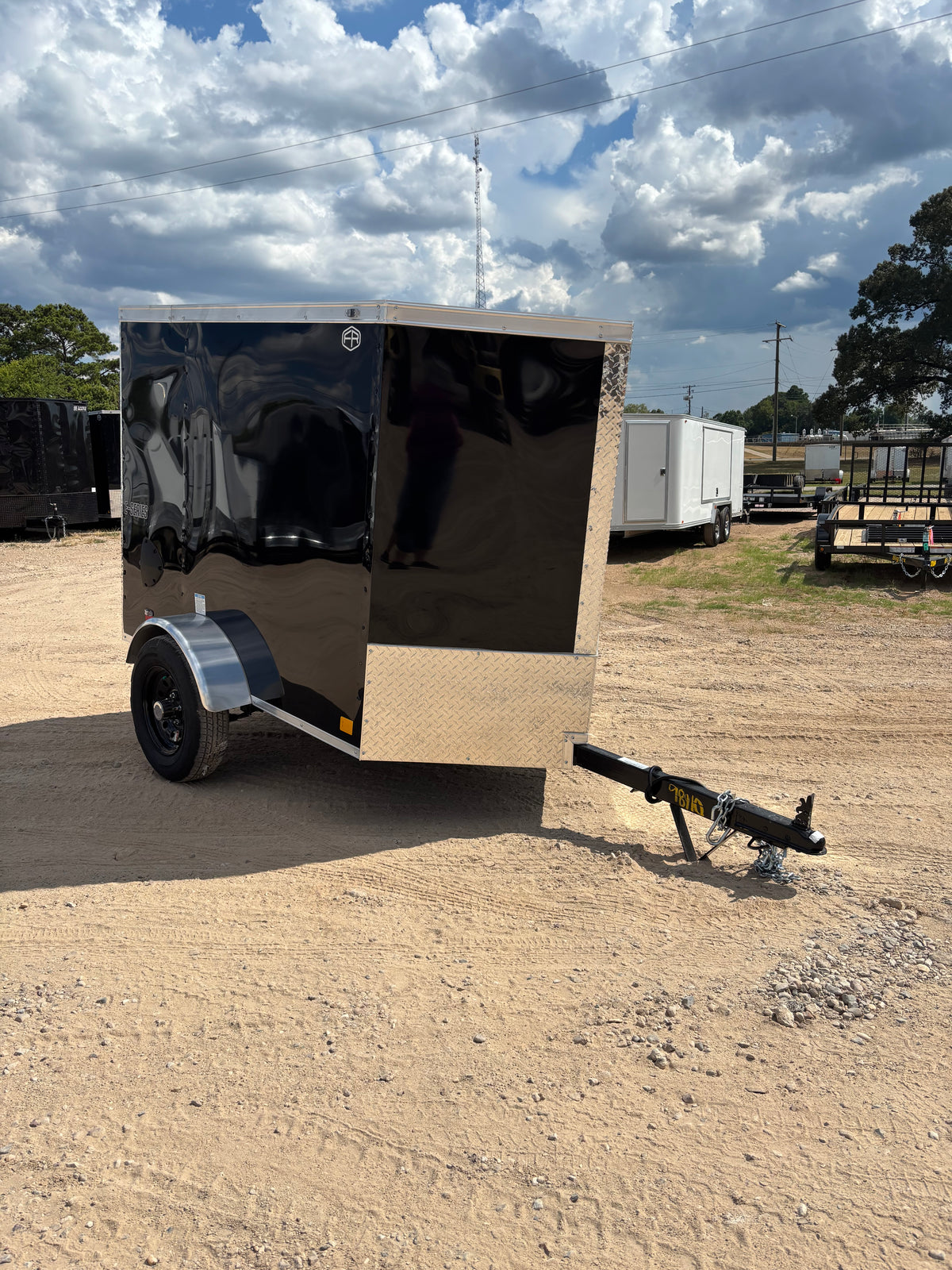

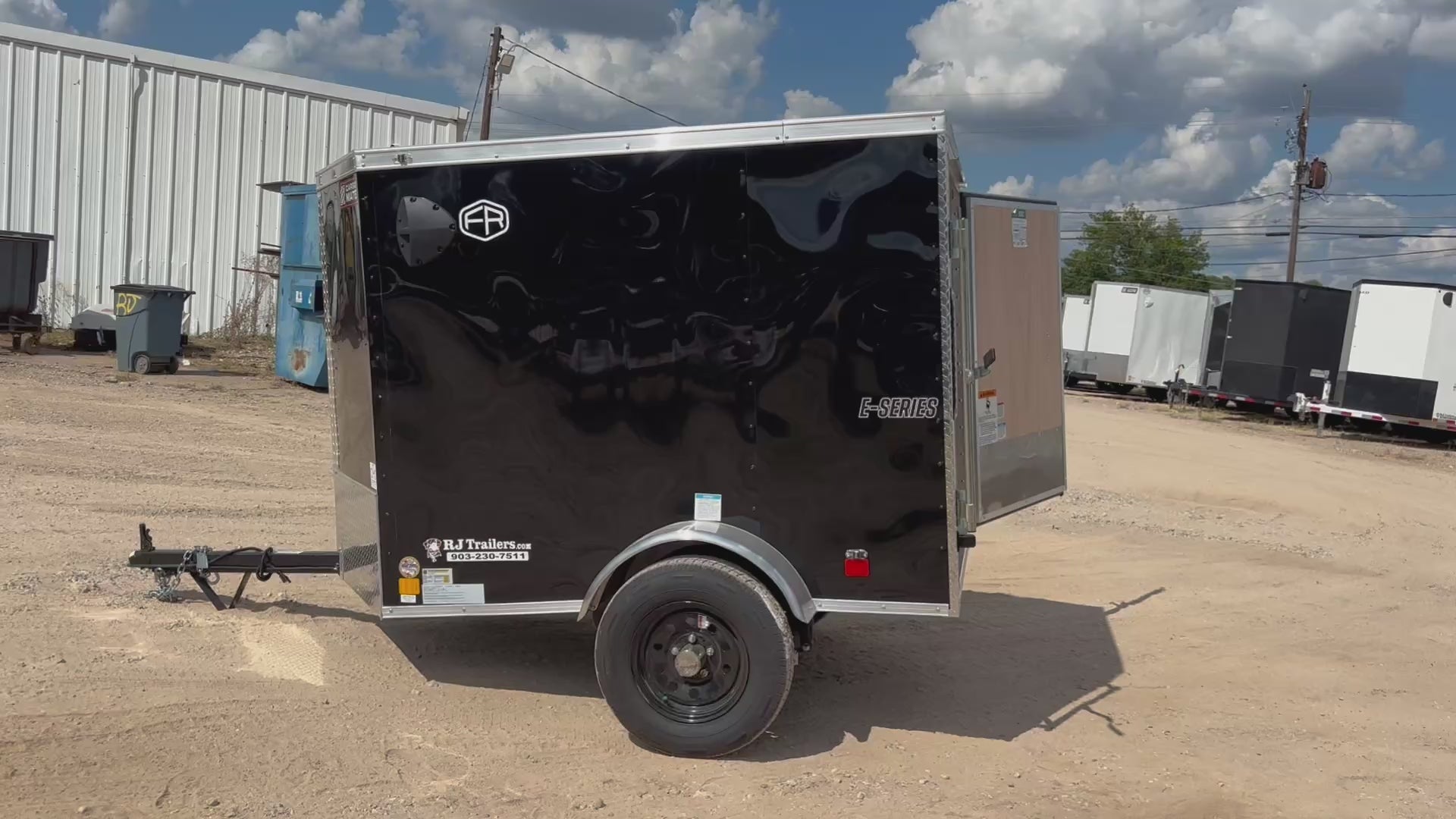

The 4x6 E-Series is a compact utility trailer designed for light-duty hauling, secure storage, and luggage transport. It is a favorite for owners of small SUVs and crossovers who need extra space for camping gear, beach equipment, or small business deliveries without the bulk of a full-size trailer.

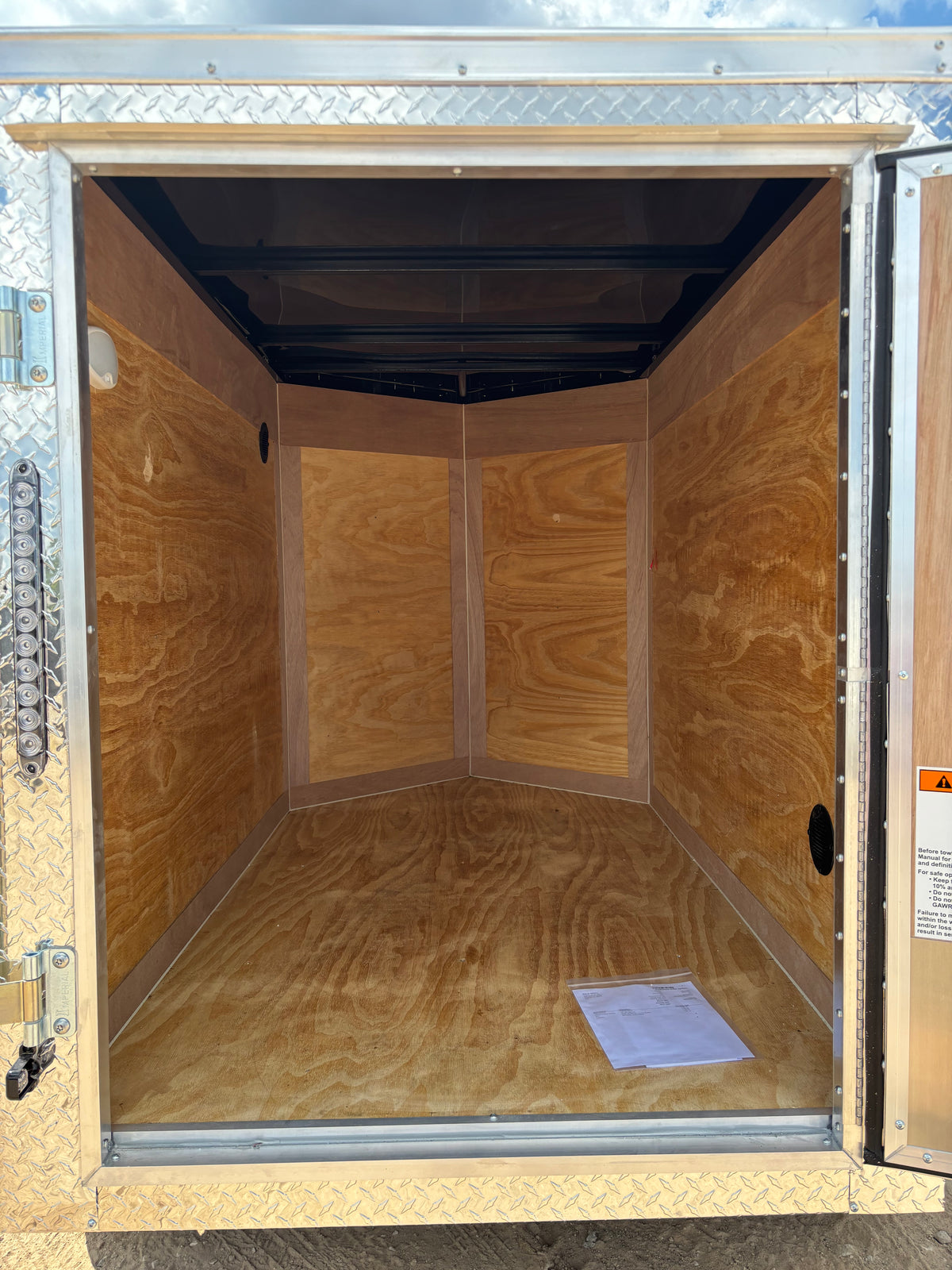

While the exterior footprint is 4'x6', the interior dimensions are optimized for volume. The interior length is approximately 7' 2" (including the 18" V-nose wedge space), the interior width is approximately 3' 9" between the walls, and the standard interior height is approximately 4' 2".

This trailer features a 2,000 lb GVWR (Gross Vehicle Weight Rating). With a curb weight of approximately 540 lbs, the remaining payload capacity is roughly 1,460 lbs. You should never exceed this limit to avoid stressing the leaf spring suspension and tires.

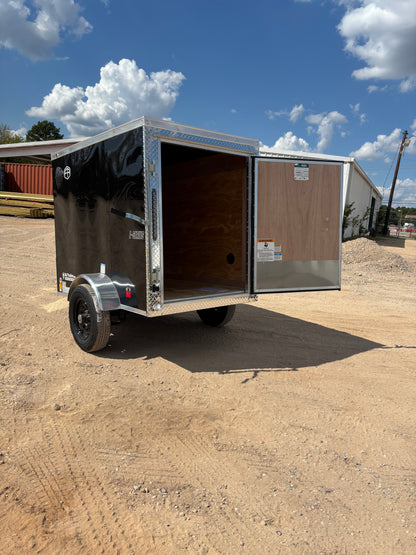

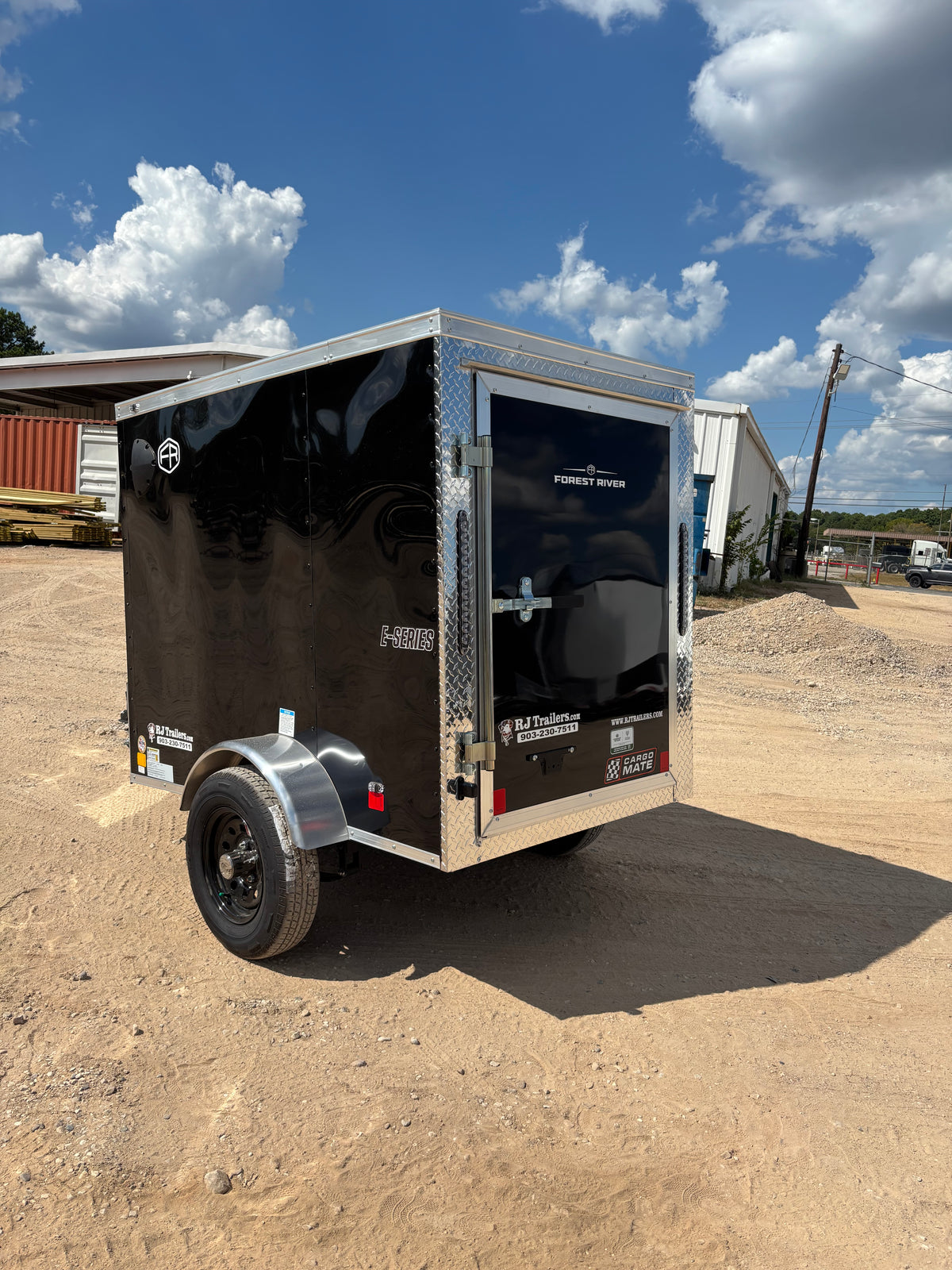

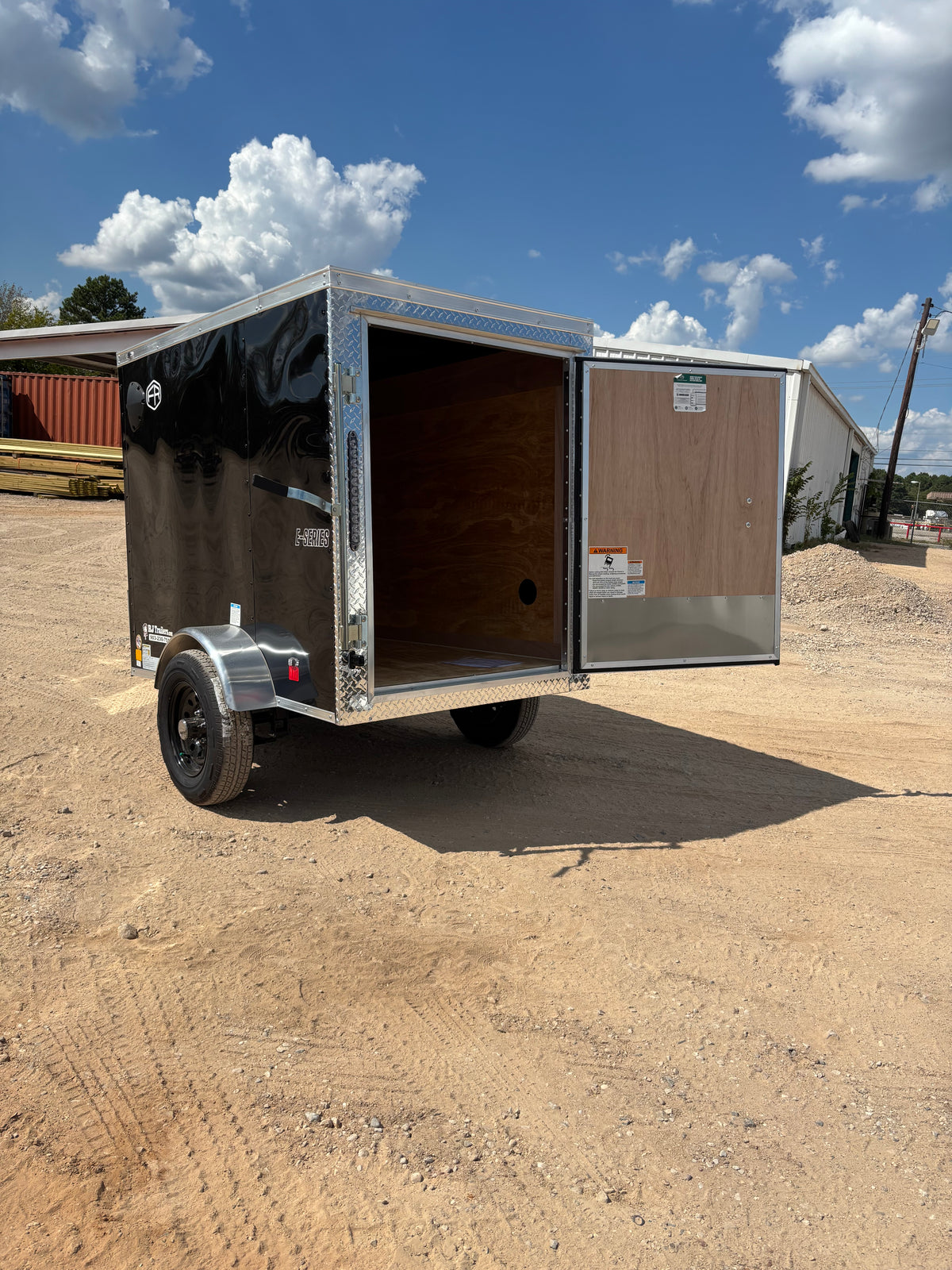

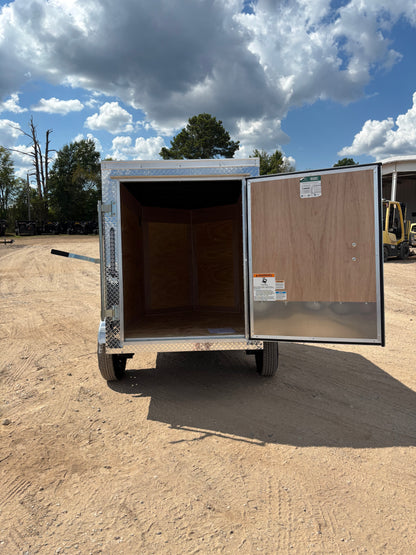

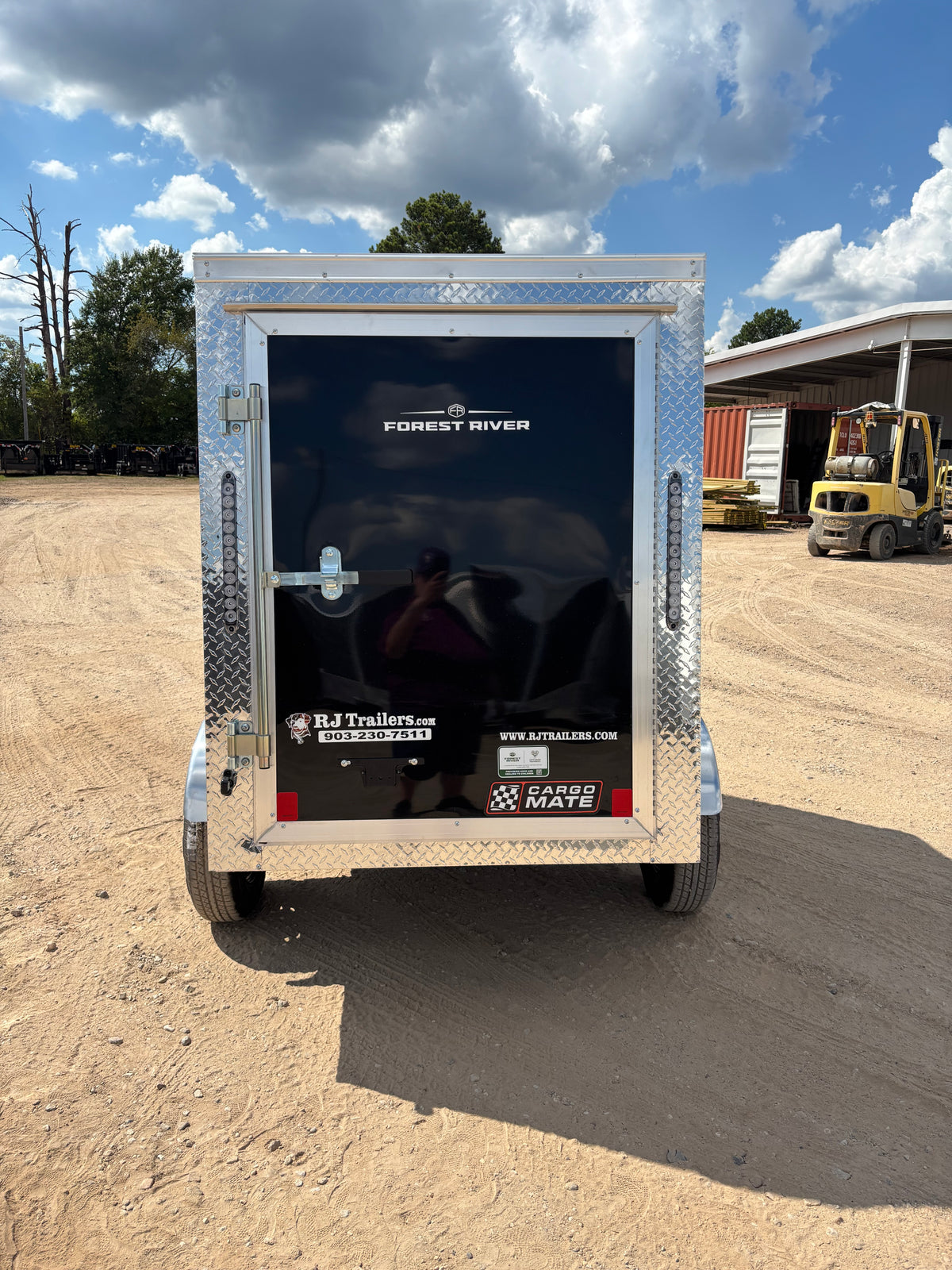

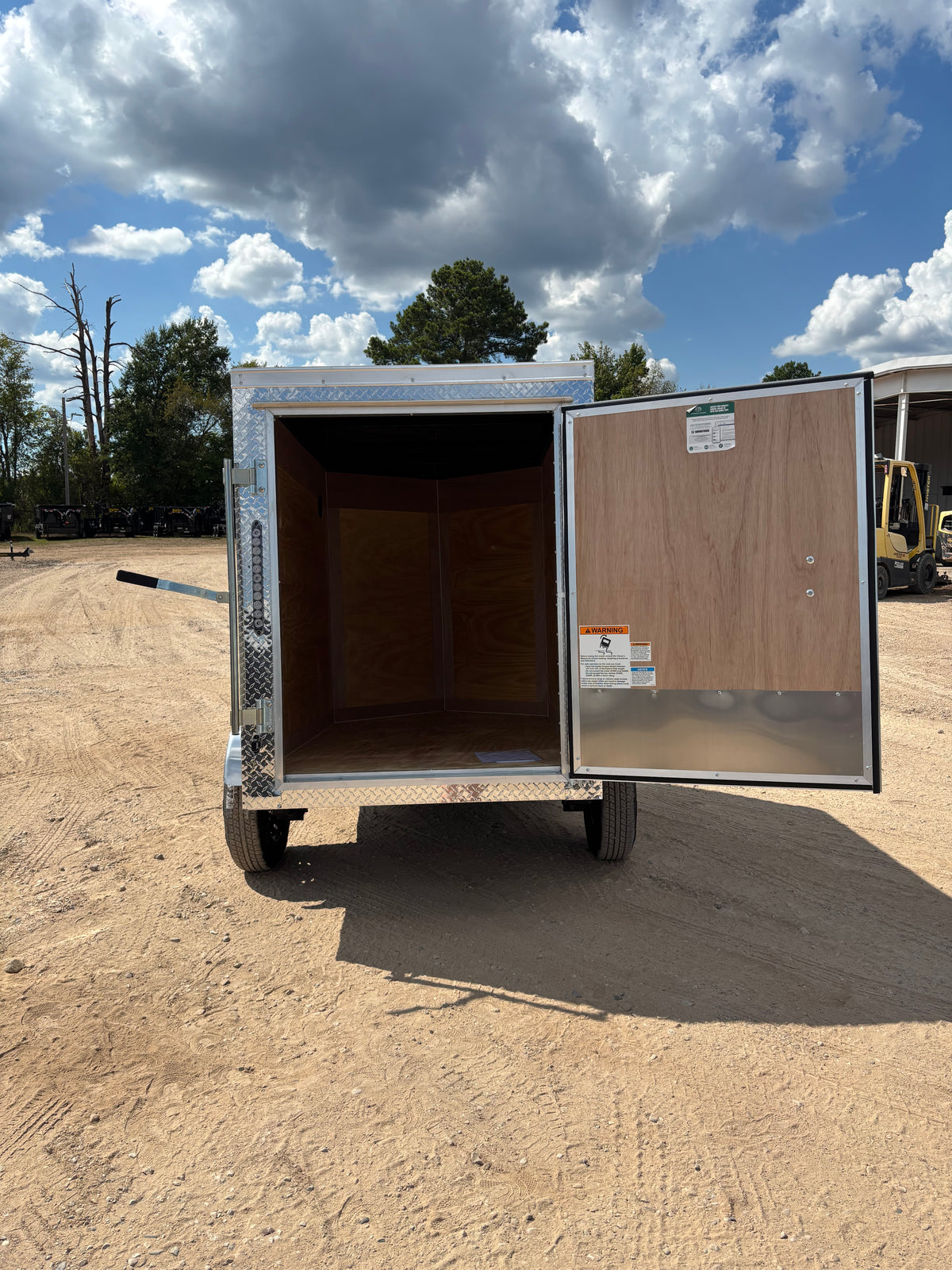

The standard single rear swing door provides an opening of approximately 36" wide by 47" high. This is ideal for boxes, furniture, or small equipment, but may be too narrow for most standard ATVs.

Yes. Cargo Mate uses a Z-Tech Undercoated Frame, and the exposed steel is treated with an epoxy black finish to resist corrosion from road salt and moisture.

The E-Series is built for durability using 3/4" plywood for the flooring (sturdy enough for heavy point loads) and 3/8" plywood for the walls, supported by 16" On-Center (O/C) vertical studs for structural rigidity.

It features a galvanized roof with an aluminum wrap on the rear. This provides a weather-tight seal, though it is recommended to inspect the sealant annually to ensure continued protection against leaks.

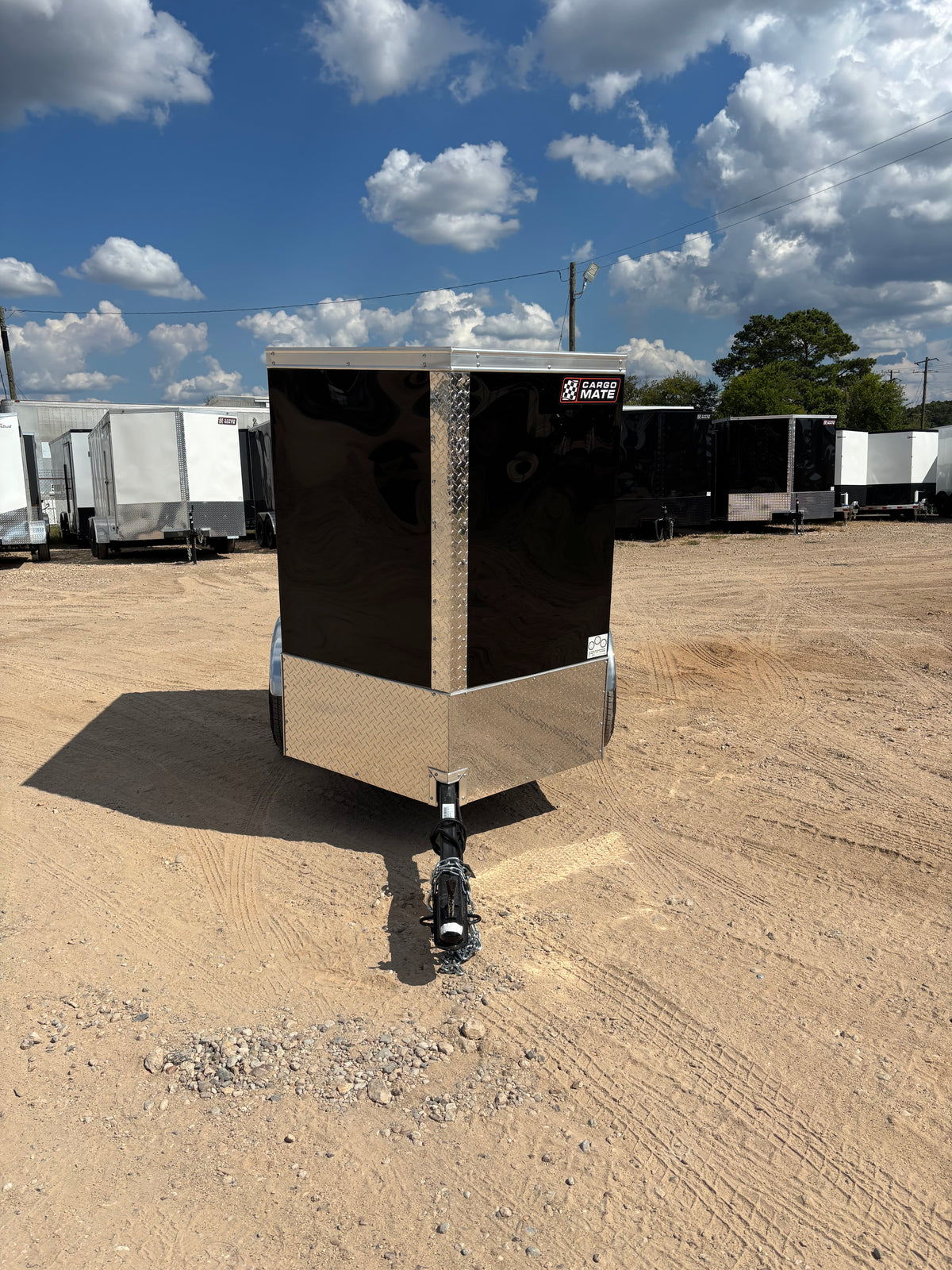

This trailer requires a 2" hitch ball. The hitch height is approximately 16", which is the standard height for most SUVs and light trucks.

It uses a standard 4-Way Flat plug. The trailer comes equipped with LED tail lights and clearance lights for superior visibility and lower power draw compared to traditional bulbs.

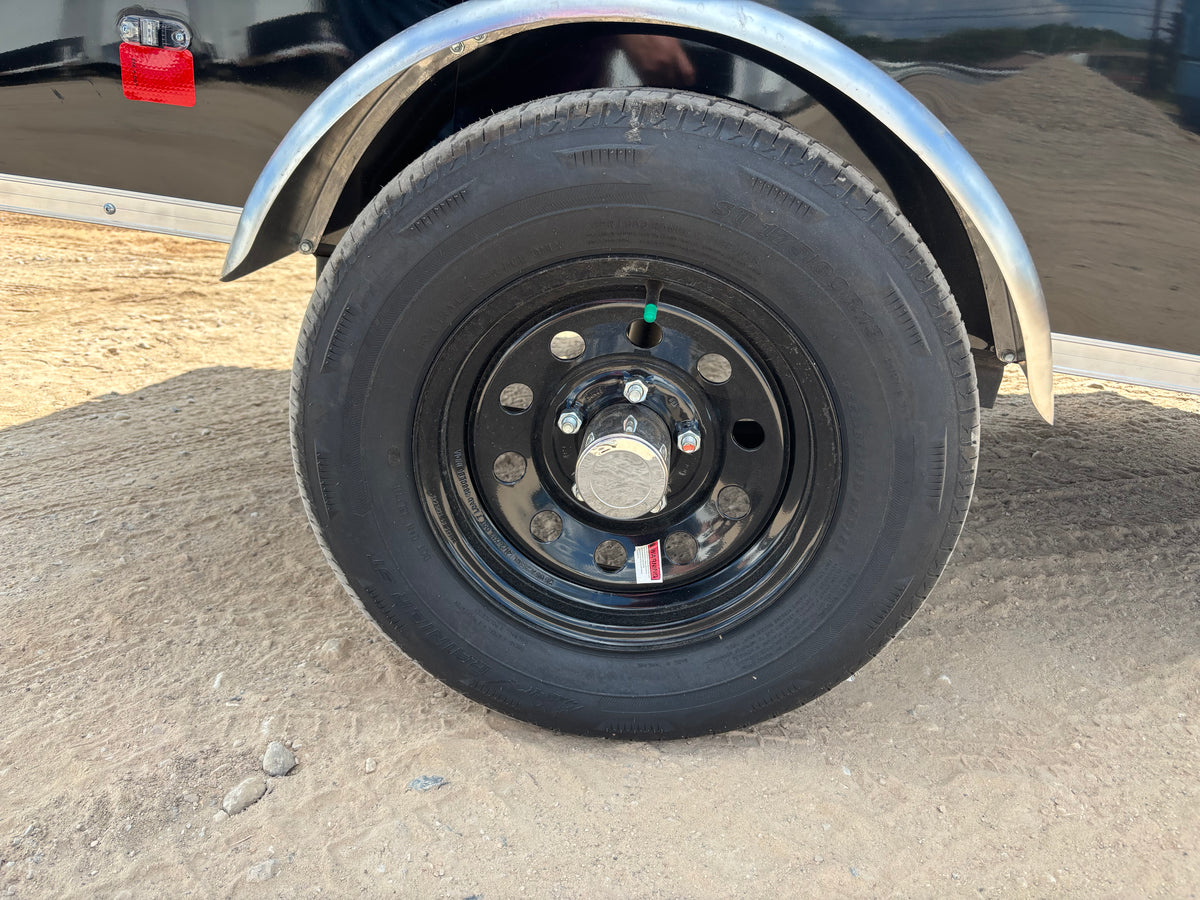

You should grease the E-Z Lube hubs every 12 months or 12,000 miles, check tire pressure before every trip, and inspect the roof and corner seals every 6 months for any cracks in the caulking.

A small dirt bike or a standard street bike may fit diagonally by utilizing the V-nose space, but you should measure your bike's total length carefully before attempting to load it.

No. A standard 4'x8' sheet of plywood will not lay flat inside the trailer, as the interior width between the walls is 3' 9".

No. With a standard interior height of roughly 4' 2", most adults will need to crouch to load and unload the unit.
